Stainless Steel Cable Mesh
The stainless steel cable mesh (Another name: stainless steel cable woven mesh, stainless steel cable netting, stainless steel rope mesh, stainless steel rope mesh, zoo mesh) is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.
As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
Stainless Steel Cable Mesh Material
The stainless steel cable mesh have two types material, said AISI 304, and AISI 316. There is no difference on the surface, but if to test ingredients, you will find the difference. The Ni in AISI 316 is more than AISI 304 material, so the material AISI 304 can meet the needs of most areas, and the AISI 316 material stainless steel wire rope mesh are more suitable used in seaside and wet areas.

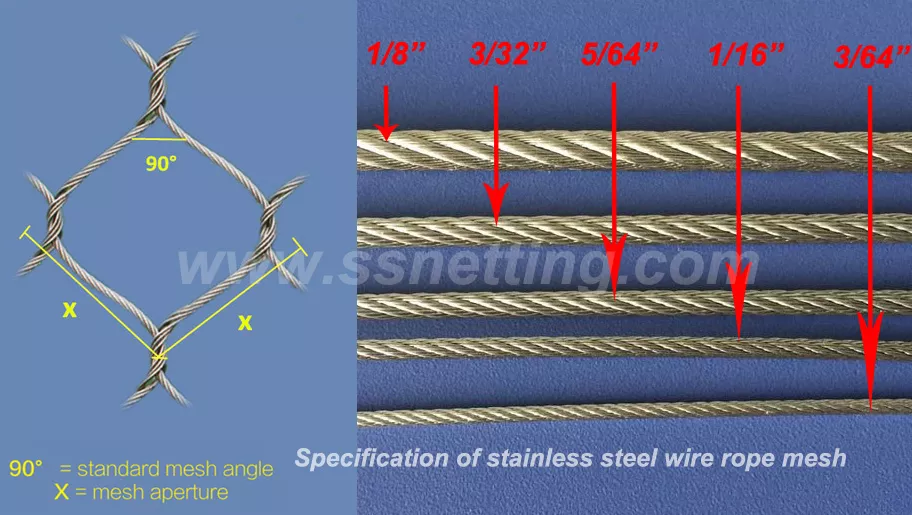

Stainless Steel Cable Mesh Specification
Stainless steel cable mesh material is used high quality stainless steel wire cables, the stainless steel wire rope grade includes type 304, type 316. The structures of the stainless steel wire cable have 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8″(3.2mm), 3/32″(2.4mm), 5/64″(2.0mm), 1/16″(1.6mm), and 3/64″(1.2mm), the standard mesh opening size includes 4/5″ x 4/5″(20mm x 20mm), 1″ x 1″(25.4mm x 25.4mm), 1-1/2″ x 1-1/2″(38mm x 38mm), 2″ x 2″(51mm x 51mm), 3″ x 3″(76mm x 76mm) and 4″ x 4″(102mm x 102mm), or larger.

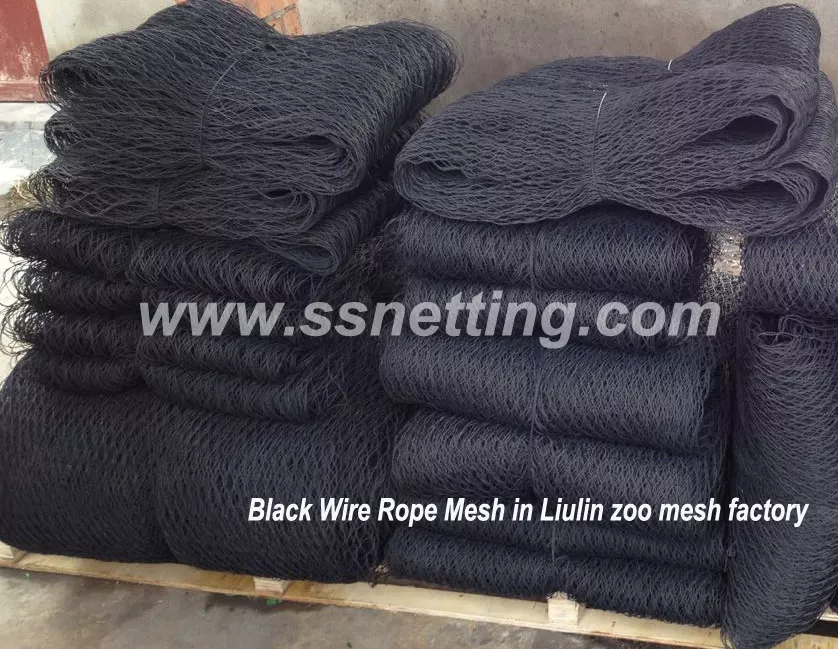

Black Stainless Steel Cable Mesh
Black stainless steel cable mesh is a special process surface treatment of stainless steel cable woven mesh, made of 304/316 stainless steel. 2 colors provided : Bronze and Black oxided stainless steel cable mesh. in the original stainless steel color on the basis of the surface into a black, used in animal cages can absorb the strong sun Light, in the hot sun to protect the animal vision is not strong light, reflected light stimulation, play a certain shade effect. But also for the black oxide treatment of stainless steel rope net, the deeper play a preservative effect, combined with a unique aesthetic sense.
Details of Stainless steel cable mesh:
Liulin animal enclosure netting use AISI 304/316 stainless steel cable mesh, the materials meet the requirements of international standards, can be used more than 30 years.
AISI304 Stainless steel apply to most of the area, the 316 material mainly used for wet environment, like seaside.
Wire rope diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm
Wire rope diameter: 3/64″, 1/16″, 5/64″, 3/32″, 1/8″
Wire rope construction: 3.2mm – 7×19; all others – 7×7

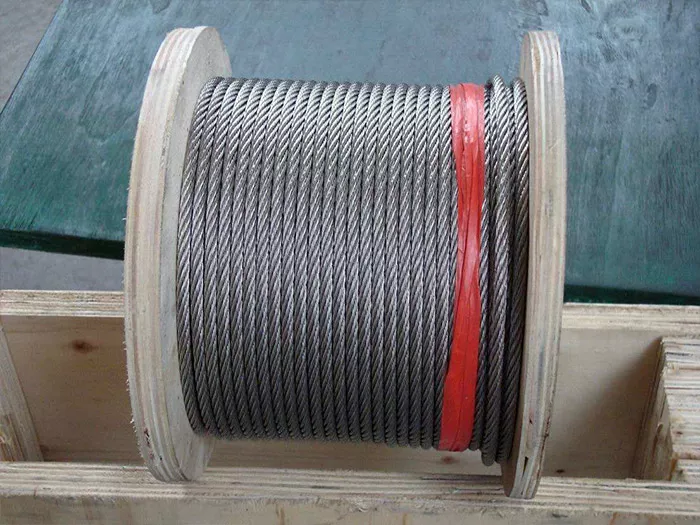

△ Stainless steel Zoo mesh use the high quality wire ropes of 304 or 316 material
3.Wire rope netting Technology:
Liulin is a factory over 20 years, which have rich experience, technology, it’s a professional manufacture for stainless steel cable mesh in zoo animal cage fence, bird netting, animal enclosure, animal protective fence, animal separative fence, zoo animal safety net, animal security fence, and so on.
The stainless steel cable mesh are 100% hand-woven from the stainless steel cable mesh, the nodes appears the x-cross form and has the fixed position, will not be shifted.
▼Material of stainless steel wire rope mesh: AISI 304 or 316 stainless steel
▼Stainless steel wire woven mesh appearance beautiful and gentle
▼Mesh panels of stainless steel wire rope mesh
▼The wire rope Diameters and mesh Aperture:
▼The stainless steel wire rope woven mesh are with the soft touching, can be stretched, folded, rolled and packed naturally
▼The recommend Zoomesh Codes for Bird Cage Netting, bird netting fence, bird enclosure mesh
| Zoo mesh code Lists for Bird Cage Netting, bird netting fence, bird enclosure mesh | |||||||
| Model No. | Material | Wire rope dia. | Mesh opening | Weight | Application | ||
| mm | inch | mm | inch | kg/m2 | |||
ZM1220  | SS304/316 | 1.2mm | 3/64″ | 20mm x 20mm | 0.8″ x 0.8″ | 0.73 | Small bird netting, small bird aviary netting |
| ZM1225 | SS304/316 | 1.2mm | 3/64″ | 25.4mm x 25.4mm | 1″ x 1″ | 0.55 | small bird aviary netting, large aviary park netting |
| ZM1230 | SS304/316 | 1.2mm | 3/64″ | 30mm x 30mm | 1.2″ x 1.2″ | 0.45 | small bird aviary netting, large aviary park netting |
| ZM1238 | SS304/316 | 1.2mm | 3/64″ | 38mm x 38mm | 1.5″ x 1.5″ | 0.4 | bird aviary netting, large aviary park netting |
| ZM1625 | SS304/316 | 1.6mm | 1/16″ | 25.4mm x 25.4mm | 1″ x 1″ | 1.1 | small bird netting, bird aviary netting, like parrots |
| ZM1630 | SS304/316 | 1.6mm | 1/16″ | 30mm x 30mm | 1.2″ x 1.2″ | 0.9 | small bird netting, bird aviary netting, like parrots |
| ZM1638 | SS304/316 | 1.6mm | 1/16″ | 38mm x 38mm | 1.5″ x 1.5″ | 0.65 | bird netting, bird aviary netting, eagle, owl |
| ZM1651 | SS304/316 | 1.6mm | 1/16″ | 51mm x 51mm | 2″ x 2″ | 0.5 | large bird netting, bird aviary netting, like crane, peacock |
★ Completed zoo mesh products codes list table download click here：
LIULIN ZOOMESH PRODUCT LIST.pdf
▼Stainless Steel Wire Rope Woven ZooMesh Key Points:
▼ Package of Birds Aviary cage netting mesh:
▼ Birds cage netting mesh installation Instructions:
▼ Zoo mesh Service:
▼ More Information you may need, click the button to you want:
